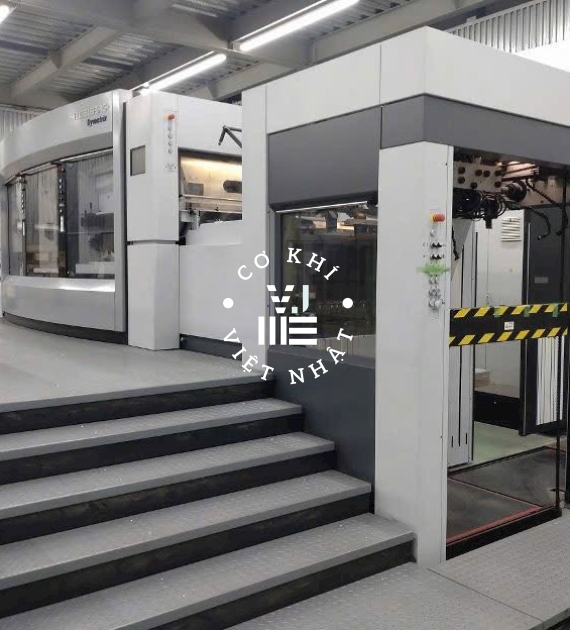

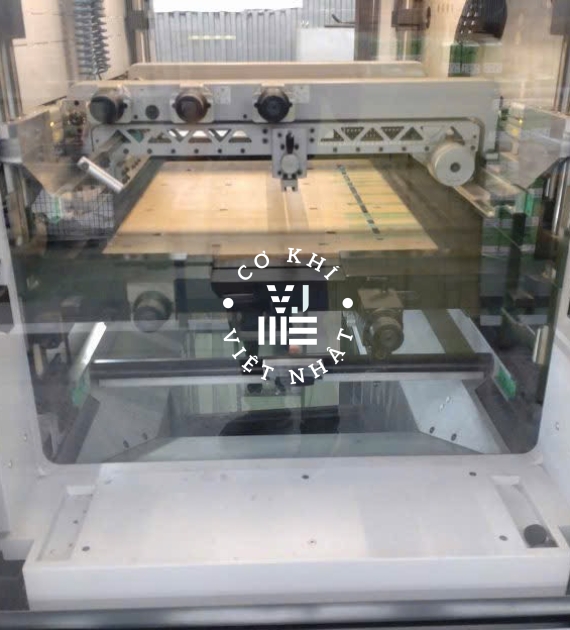

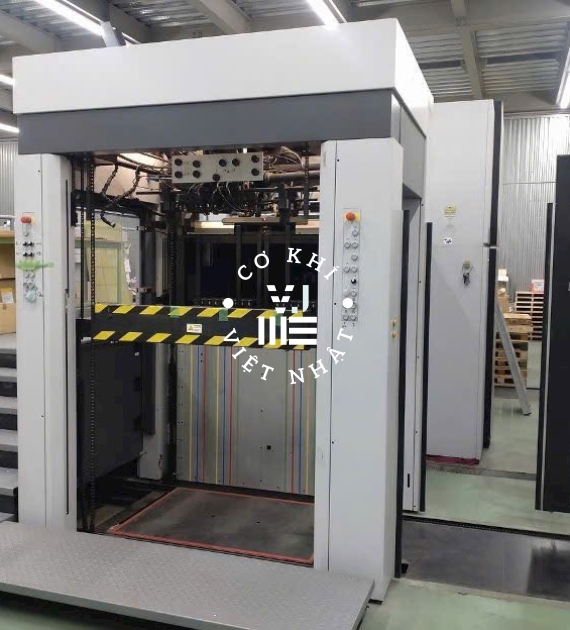

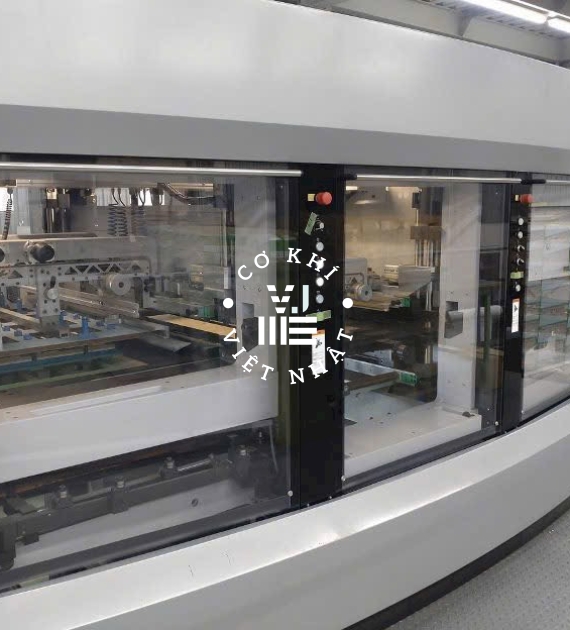

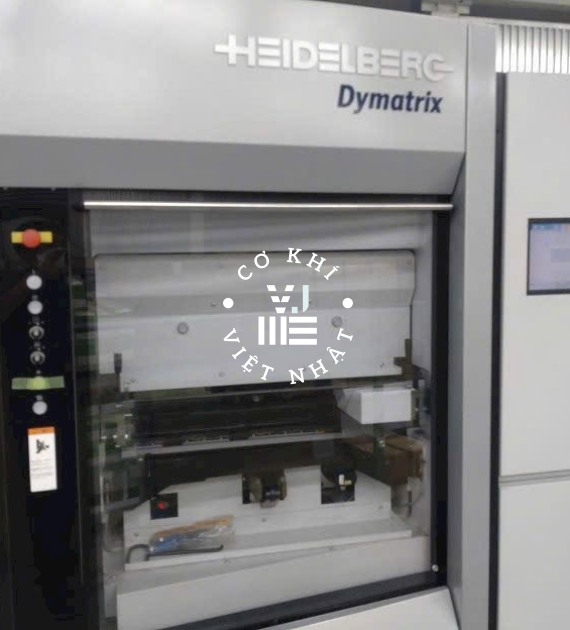

Máy bế tự đông HEIDELBERG DYMATRIX 106 PRO CBS

Nhãn hiệu : Heidelberg Dymatrix 106Pro CBS

Năm sx : 2014

Performance data

Sheet format (min.)/with MasterSet	300×350 mm / 350×400 mm (11.81×13.78 in / 13.78×15.75 in)
Sheet format (max.)	760×1,060 mm (29.92×41.73 in)
Machine speed (max.)	7,500 sheets per hour
Die-cut pressure (max.)	2.6 MN / 260 t

Processed materials & Pile heights (incl. pallet)

Paper (min.)	90 g/m²
Carton/solid cardboard (max.)	2,000 g/m²
Corrugated cardboard (max.)/with MasterSet	4.0 mm / 2.0 mm (0.16/0.08 in)
Feeder pile height (max.): - without non-stop - in non-stop operation	1,500 mm (59.06 in) 1,200 mm (47.24 in)
Feeder pile Weight (max.)	1,500 kg
Delivery pile height (max.)	1,400 mm (55.12in)
Delivery pile Weight (max.)	1,350 kg
